Brand

SHANTUI

Model

L53-C3 SG

(Sand version)

L53-C3 CH

(Coal version)

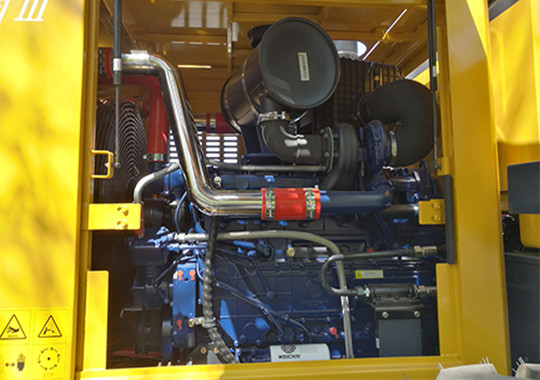

Engine model

WP10G220E343

WP10G220E343

Rated power(kW/rpm)

162/2000

162/2000

Machine working weight(kg)

16400±300

16400±300

Maximum dump clearance(mm)

3377±30

3251±30

Dumping reach(mm)

1035±20

1161±20

Machine overall size(mm)

8020±50*3020±30*3425±30

8020±50*3016±30*3425±30

Maximum lifting force(kN)

170

170

Three items(s)

≤9.7

≤9.7

Speed of advance(km/h)

F1:0-13，F2:0-38

F1:0-13，F2:0-38

Reverse speed (km/h)

R1:0-17

R1:0-17

Wheelbase(mm)

3000±30

3000±30

Fuel tank(L)

215

215

Rated bucket capacity (m³)

3

4

Rated loading capacity(t)

5

5
